OUR PRODUCTS
Ch series

Versatility, robustness, and reliability are the fundamental characteristics that set these fans apart, making them suitable for a wide range of industrial applications, both standard and special.

The CH fan series is designed to provide versatile solutions across numerous industrial fields, including: air conditioning systems, drying plants, dust extraction, spray booths, boilers, and furnaces.

The main construction feature of the CH fans is their ability to ensure high air flow rates while maintaining a moderate pressure level, delivering high efficiency and low noise levels.



Technical specifications

  • Pressure (max): 7.000 Pa
  • Flow rate (max): 460.000 m³/h
  • Impeller size: Available in 19 sizes with impeller diameters ranging from 400 mm to 2,450 mm
  • Blades: backward inclined airfoil or flat balde
  • Directly coupled or belt-driven
  • Handles clean or dusty air
  • Compliant with ErP regulations

Special executions:

  • Stainless Steel AISI
  • ATEX compliant
  • Polypropilene
  • Gastight Execution
  • Insulated execution
background

Impeller model

01

ChA Impeller

  • Reverse inclined airfoil blade.
  • Clean air
  • The shape of the bade allows to reach efficiencies up to 89% with a consequent very low noise level.
02

ChC Impeller

  • Backward inclined flat blade.
  • Air with limited quantity of dust
  • The shape of the blade allows to reach yields up to 80%.
03

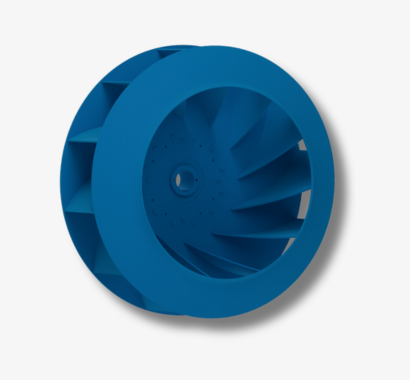

ChB Impeller

  • Backward inclined flat blade.
  • Dusty air
  • The shape of the blade allows to reach yields up to 80%.
01
02
03
1 / 3

Custom tailor made


We are able to study and provide customized solutions for all specific needs.



Contact us for more information, you will speak directly with one of our experts.

Contact us for more informations



Accessories

  1. Outlet counterflange
  2. Outlet Screen
  3. Outlet flexible connection
  4. Outlet damper
  5. Outlet gravity damper
  6. Coulisse outlet damper
  7. Inlet screen
  8. Inlet counterflange
  9. Inlet flexible connection
  10. Inlet spigot
  11. Inlet vane control
  12. Inlet silencer
  13. Spring isolators
  14. Rubber isolators
