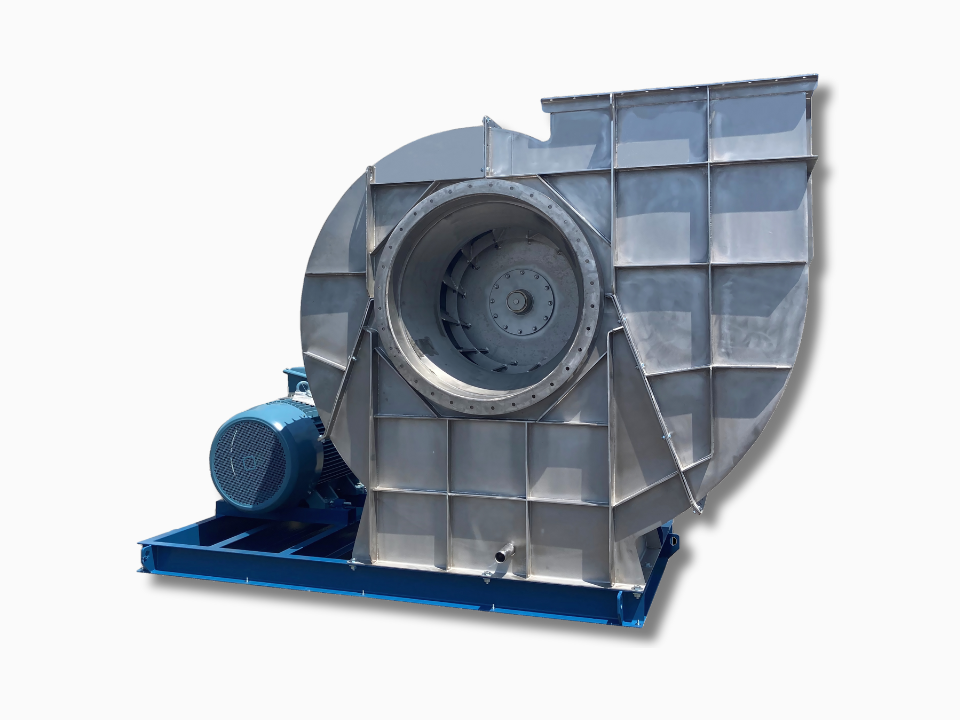

X series

For this series of fans, two configurations are available: with transmission and directly coupled to the electric motor, ensuring a fixed rotational speed. In the directly coupled version, it is possible to optimize the fan’s performance by modifying the impeller, allowing for reductions or increases in performance. Each fan can thus be adapted with six different performance options.

The system is designed to withstand temperatures up to 300°C, ensuring robust performance even in harsh environments.

Technical Specifications

• Pressure (max): 10.000 Pa
• Flow rate (max): 500.000 m³/h
• Impeller dimensions: Available in 14 sizes with diameters ranging from 800 mm to 2,240 mm
• Static parts: (casing, base supports, motor) are made from robust steel sheet metal, welded and reinforced with ribs and profiles
• Blades: Flat blades, welded to the appropriately shaped front cone and the rear disc.
• Additional equipment: The fan is equipped with a small fan for heat dissipation
