DT series

Versatility and sturdiness are the main characteristics of this series, which is suitable for many areas such as steam intake, drying systems, plastic moulding machines and all applications requiring a small amount of flow with a fair amount of pressure.

Technical specifications

  • Pressure (max): 4.000 Pa
  • Flow rate (max): 700 m³/h
  • Impeller size: avaible in one impeller size (270mm diameter) in single stage (DT1) and dual stage (DT2)
  • All of the fans, housings and impellers are made of sand-blasted, die cast aluminium alloy.



Model

  • DT1 model:
    The fans can have clockwise rotation (RD) or counter clockwise rotation (LG).
    In standard execution, the fan can convey fluids up to a temperature of 80°C with a relative humidity of less than 80%.
    In "Execution T" the DT1 fan can convey fluids up to 150°C.

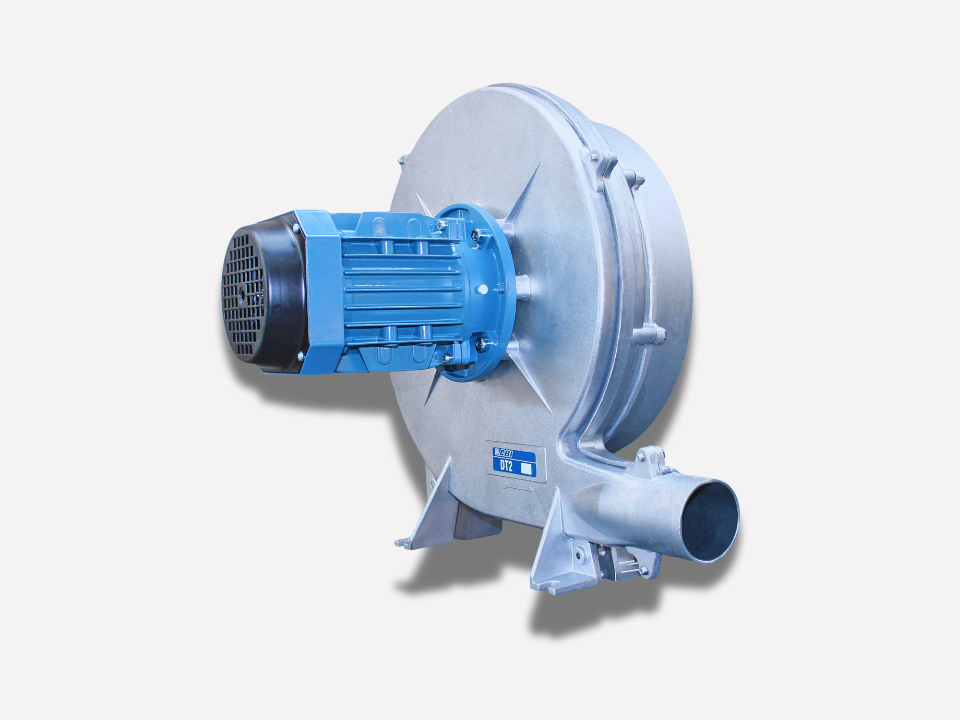

  • DT2 model:
    The fan is only built in the LG 270 fixed discharge position.
    It can convey fluids up to 110°C with the motor body located on a double-wall spaced from the housing.

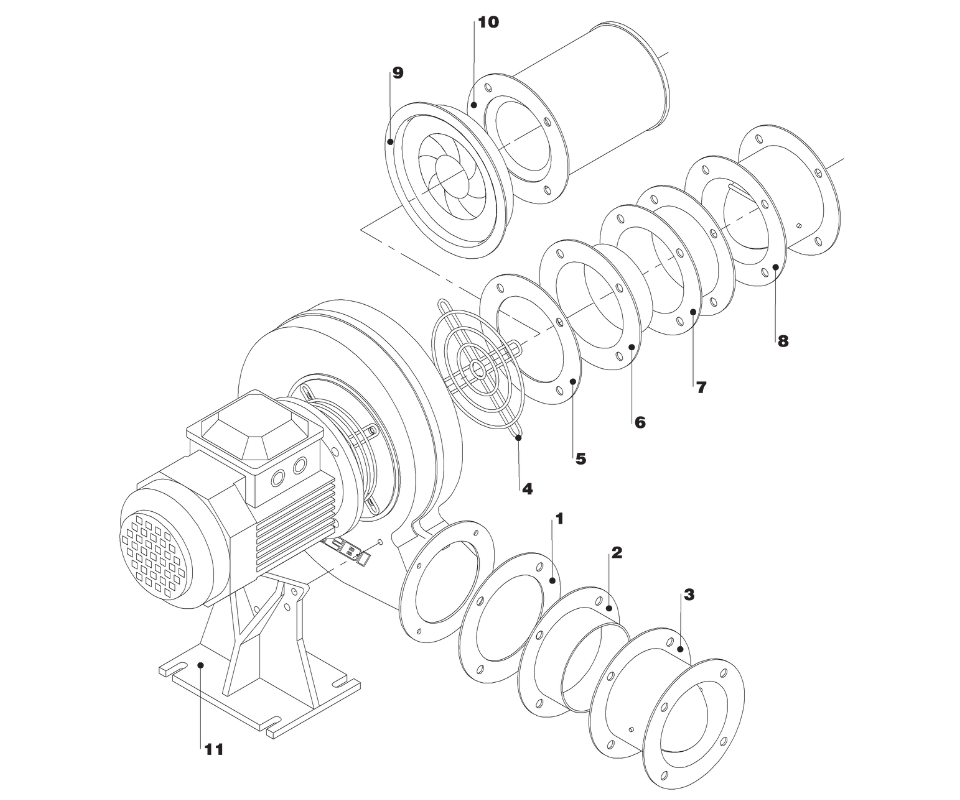

Accessories

  1. Outlet counterflange
  2. Smooth outlet spigot
  3. Outlet butterfly damper
  4. Inlet screen
  5. Inlet counterflange
  6. Smooth inlet spigot
  7. Flanged inlet spigot
  8. Inlet butterfly damper
  9. Diaphragm damper
  10. Inlet filter
  11. Support bracket

Custom tailor made


We are able to study and provide customized solutions for all specific needs.



Contact us for more information, you will speak directly with one of our experts.
